Longline Industrial Switch Unmanaged 100M Fast Ethernet 5-port 8-port LNG1000 Series LNG1000-5E-IK

Switching Features:

Switching Capacity: 1 Gbps
Packet Forwarding Rate: 0.74 Mpps
MAC Address Table: 1K
Management Level: Unmanaged (Plug-and-Play operation)

Port Features:

LNG1000-5: 5 × 10/100 Mbps RJ45 ports
LNG1000-8: 8 × 10/100 Mbps RJ45 ports
Auto speed adaptation (10/100 Mbps), Full/Half duplex mode
Auto MDI/MDI-X support

LED Indicators:

PWR (Power)
L/A (Link/Activity per port)

Power Supply Requirements:

Input Voltage: DC 12–57V (wide-range industrial power input)
Power Consumption: < 5W (maximum, non-PoE)

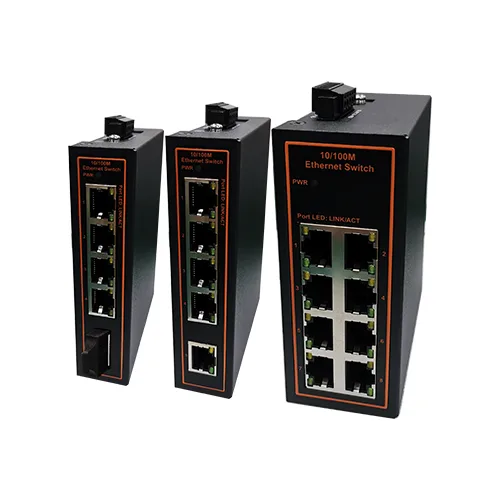

The Longline LNG1000 Series is an industrial-grade unmanaged Fast Ethernet switch designed for reliable and stable data communication in harsh environments. With 5-port and 8-port 100M RJ45 options, it offers a compact, durable, and cost-effective solution for industrial networks requiring simple plug-and-play deployment. Its rugged metal housing, wide operating temperature range, and high electromagnetic immunity make it ideal for factory automation, CCTV, transportation, and energy systems.

IEEE 802.3: 10Base-T
IEEE 802.3u: 100Base-T
IEEE 802.3x: Flow Control
IEEE 802.1p: QoS Traffic Prioritization
IEEE 802.3az: Energy Efficient Ethernet (EEE)
EMI/EMS Industrial Standards:
– IEC 61000-4-2 (ESD)
– IEC 61000-4-4 (EFT)
– IEC 61000-4-5 (Surge)

Ürün İsmi : LNG1000-5E-IK Industrial Switch

Ürün Tipi : Unmanaged Industrial Switch

Ürün Modeli : LNG1000-5E-IK Industrial Switch
